Precision air conditioner
Airedale : The Critical Cooling Specialists
Whether it’s to maintain productive and healthy working environments for people or optimized operating envelopes for critical equipment in data centers and other industries, Airedale delivers a tailored solution based on world-class products, industry-leading design, intelligent software, and unrivalled end-to-end customer support.
With headquarters at our state-of-the-art 23,000m2 research, development, manufacturing, training and office facility in Leeds, UK, Airedale also has additional production sites in Corset (UK), Guadalajara (Spain), Buena Vista (US) and Grenada (US). Airedale employs approximately 600 people.
The robust product development process at Airedale delivers equipment that is consistently selected to perform in the most demanding industries on the planet.
The experts in Airedale research and product development teams, combined with its R&D facility enables it to engineer high performance products that push the boundaries of technology.
The hard work and dedication shown by every Airedale employee is what makes it a world-class manufacturer.
Airedale manufacture products that are built to last, thanks to our committed teams, and years of experience, innovation and development.
Playlist
DATA CENTRES
Airedale has been involved in IT cooling since 1974. We deploy intelligent cooling systems that help deliver greener data centers.
HEALTHCARE
Airedale understands the regulations and challenges in the industry and how important air management is in healthcare settings.
PHARMACEUTICALS
Airedale have a strong pedigree in delivering precision, efficiency, and reliability to the no-compromises world of pharmaceuticals.
COMFORT
Airedale extensive comfort cooling portfolio can be custom fit to any site and we champion efficiency and the environment in every project.
EDUCATION
A world class education system needs world class HVAC to deliver healthy and productive learning environments.
Precision Cooling
SmartCool™ i-drive
SmartCool just got smarter.
This inverter-driven iteration of the versatile SmartCool range offers exact control and superior efficiency
5-83kW
Inverter DX (Scroll compressors, R410A)
EER up to 6.54
Downflow
Optimised for hot and cold aisle containment
Inverter compressors for exact
control & efficiency
Supply temperatures up to 26°C
A wide ambient envelope of -20°C to 50°C
Up to 21% more cooling kW/m² than
similar leading competitor units
SmartCool™ DX
Airedale's flagship range of precision air conditioners. Developed for applications where precise temperature and humidity control are key to operations
16-140kW
DX (Scroll compressors, R410A),
Dual Cool
EER up to 41.34 (Dual Cool)
Downflow
EC Fans
Dual cool option with glycol free cooling
Flexible range offers 100 models across 8 case sizes
Maximised coil surface areas reduce fan power and improve air flow
Fixed speed tandem compressors
offer four stages of cooling
SmartCool™ Chilled Water
SmartCool CW meets the increasing demand for ultra-efficient, large capacity precision cooling that delivers quiet and accurate climate control in data centres
11-233kW
Chilled Water
EER up to 51.3
Downflow
EC Fans
Up to 95% free cooling with an
Airedale chiller
Maximised coil surface areas reduce fan power and improve air flow
Optional PICV delivers precise flow control
Flexible range offers 42 models across 11 case sizes.
IT Cooling AHUs

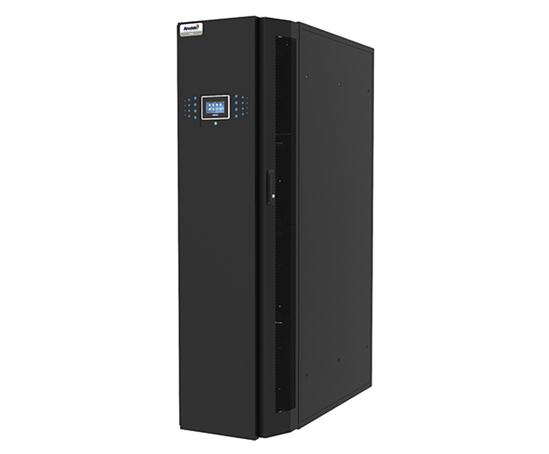

InRak™
High performance in-row solution which provides industry-leading cooling for its footprint
10-67kW
Available in DX (scroll compressor, R410A
EER up to 3.10 (full load) and 5.82 (part load)
Transmits cooled air horizontally
across the front of the server racks
Up to 83% more cooling compared with conventional
CRAC units.
Barkell AHU
We design and manufacture a varied and diverse range of bespoke Air Handling Units (AHUs), including indoor, outdoor, side-by-side, stacked, roof or floor-mounted
0.2m³/s-50m³/s
Enviropack™ R410A refrigeration package available providing cooling (10kW-235kW) and heating (9kW-218kW)
Various filtration options
Modulating or shut off damper
Mixing/exhaust box
Plate heat exchanger
Thermal wheel
Run around coils
Integrated controls
Acoustically and thermally insulated
Integrated air to air heat pump for cooling or reverse cycle operation.
Ecotel™ DX
A self-contained, outdoor close control cabin cooler developed to provide precise climate control for telecommunication cabins and cabins, kiosks and modular buildings
5-15kW
DX (Scroll Compressor, R410A) EER
up to 3.41
Downflow
Single or dual system offers up to three stages of cooling
Mounts externally-suits applications with limited floorspace
Quick and easy to install
Up to 70% energy saving
with free-cooling
Four model sizes available
Ecotel™ DX
A self-contained, outdoor close control cabin cooler developed to provide precise climate control for telecommunication cabins and cabins, kiosks and modular buildings
5-15kW
DX (Scroll Compressor, R410A) EER
up to 3.41
Downflow
Single or dual system offers up to three stages of cooling
Mounts externally-suits applications with limited floorspace
Quick and easy to install
Up to 70% energy saving
with free-cooling
Four model sizes available
Chiller Ranges

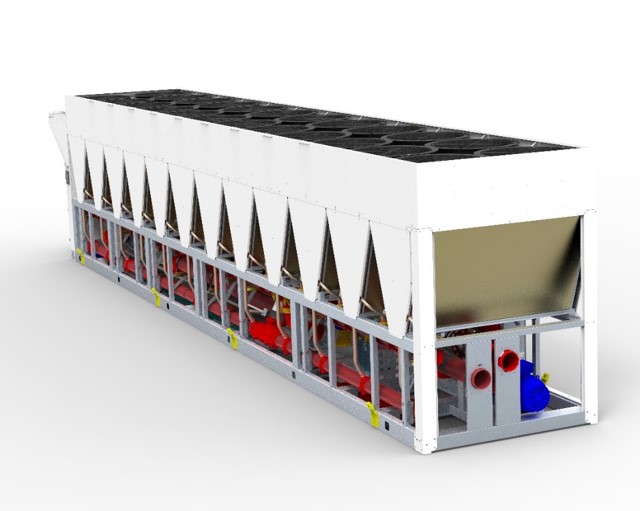

OptiChill™
Airedale's original data centre chiller platform is based on a screw compressor and has been optimised with a V-block evaporator condenser for high capacity cooling
1800kW
Screw compressor
EER up to 3.86
R134a
High free-cooling capability due to high airflow EC fans and high efficiency heat exchangers
screw compressors increase reliability, efficiency and improve overall chiller performance
Optional inverter-controlled pump, combined with flow monitoring, provides effective water management
Helix intelligent controls.
EcoChill
An energy efficient, R410A optimised compact air-cooled chiller range with heat pump variants
6-200KW
Scroll compressor
EER>3.39 (cooling only)
EER>3.23 (heat pump)
R410A
Available as cooling only or as a heat pump variant
Small footprint makes it ideal for solutions with limited space
Available in eleven sizes
ESEER up to 4.00
Requires minimum refrigerant charge and has a high heat transfer coefficient.

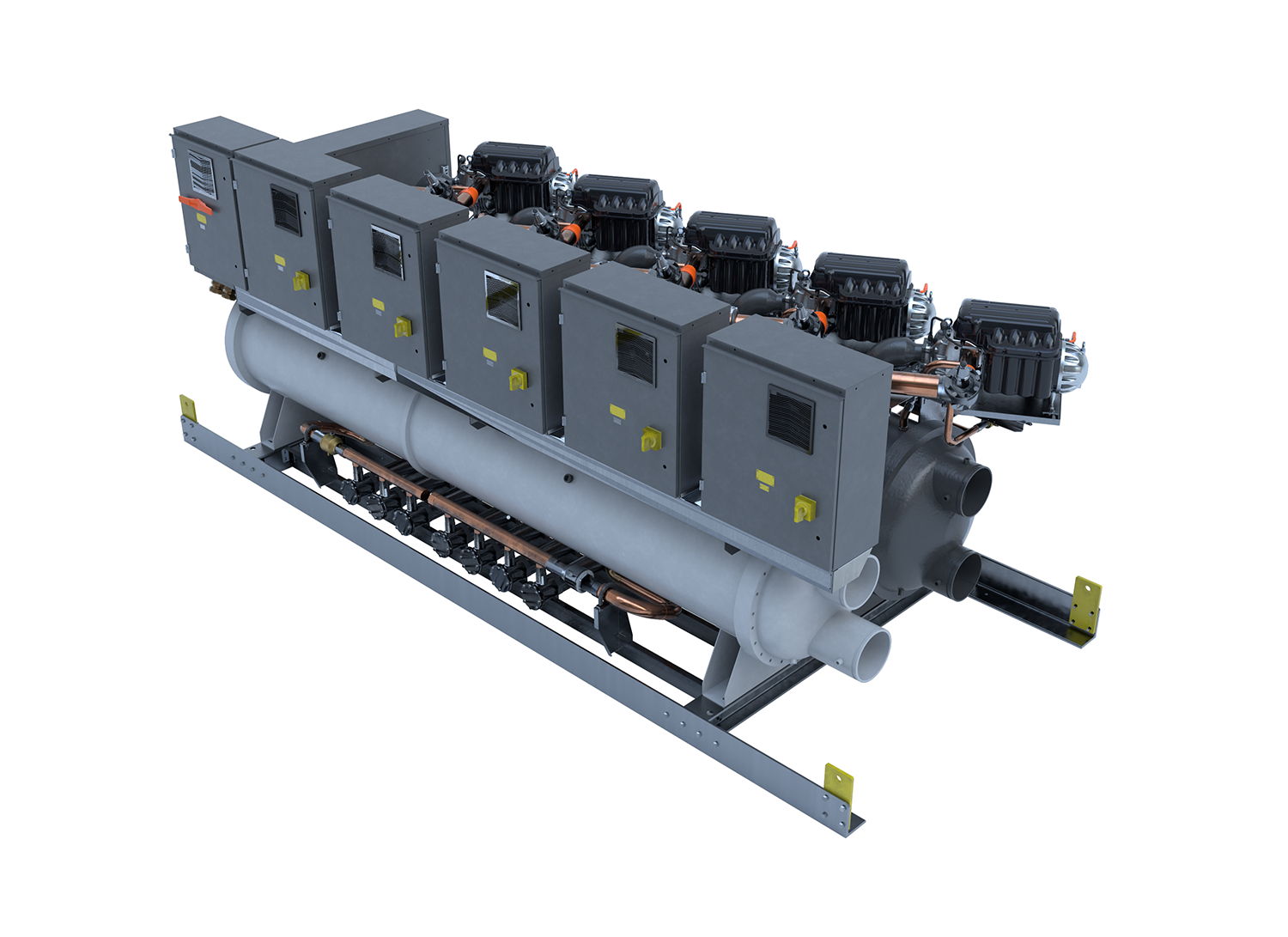

TurboChill™ Hydro
High capacity, water-cooled, TurbocorⓇ chiller with flexible arrangements and great energy efficiencies
200-3000kW
TurbocorⓇ oil-free centrifugal compressors
EER> 5.79, ESEER > 8.98
R134a/R513A
Near silent, oil-free compressor operation
Flexible configuration - fit into tight spaces with vertical options, all units fit into standard width containers for easy shipping
Electronic expansion valves - maximum efficiency through the operating envelope of the unit
Variable flow options
Helix intelligent controls
TurboChill™
Air-cooled, high efficiency, high-capacity chiller with Turbocor® oil-free centrifugal compressors
200-1830kW
Turbocor® oil-free centrifugal compressors
EER up to 4.35
R134a/R1234ze
Free-cooling available, including Enhanced Free Cooling™" on DCS models
Three BREEAM points
Near silent, oil-free compressor operation
Exact match for load requirements
Spray evaporator option with reduced refrigerant charge
Helix intelligent controls
DCS version available, specifically engineered for data centres.

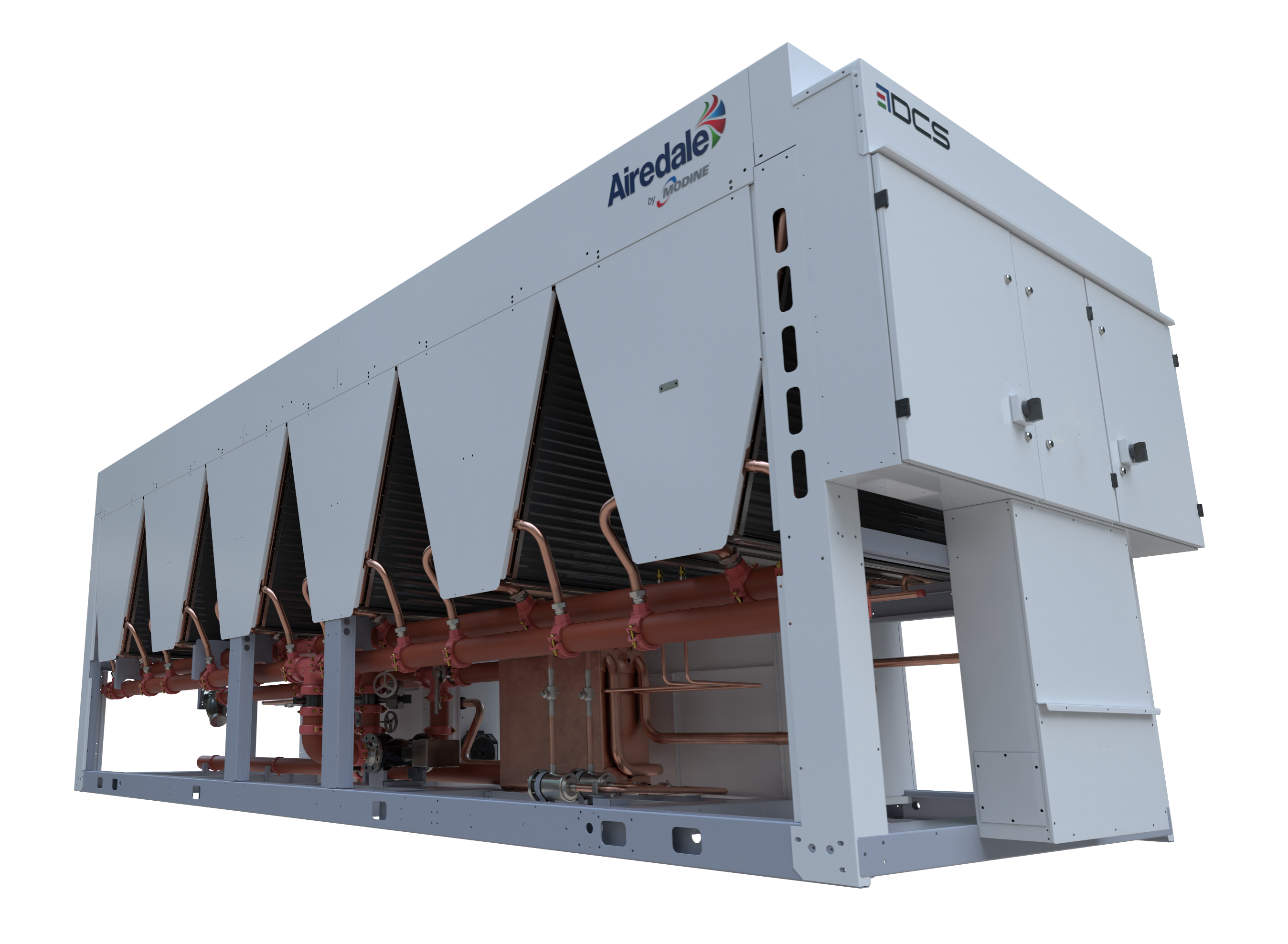

DeltaChill™
Air-cooled, high efficiency scroll chiller offering free cool and wide range of cooling capacities. Range features the highest capacity R32 air-cooled chiller in the world
110-1010kW
Scroll compressors
EER up to 3.6
R410A/R32
Free-cooling available, including Enhanced Free Cooling on DCS models
Three BREEAM points
Extremely energy efficient and compact
A huge range of 282 models provides exceptional flexibility
Quiet, cost effective scroll compressors
and the latest fan technology
Helix intelligent controls
DCS version available, specifically engineered for data centres.
Ultima Compact
The Ultima Compact Chiller is an air-cooled, high efficiency, compact chiller, offering exceptional ESEER and EER ratings
30-150kW
Scroll compressors
EER> 3.42, ESEER > 4.42
R32
Latest DSH scroll compressor technolo
Multiple scroll compressors provide staged capacity control, enabling syste water volumes to be reduced and part load efficiencies to be optimised
Compact design
Low sound levels
Full hydraulic pump options
Single and dual circuit models
Helix intelligent controls.
